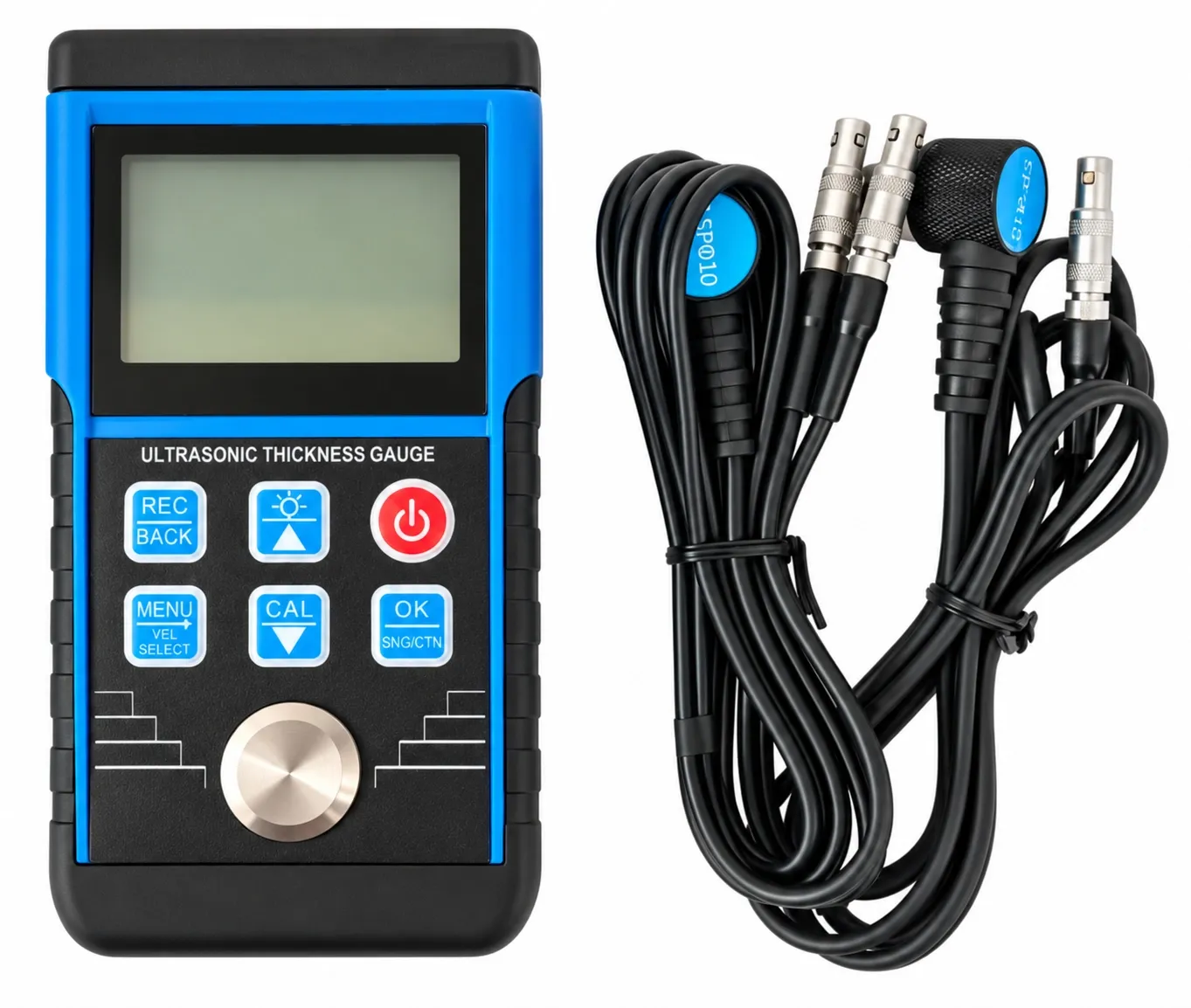

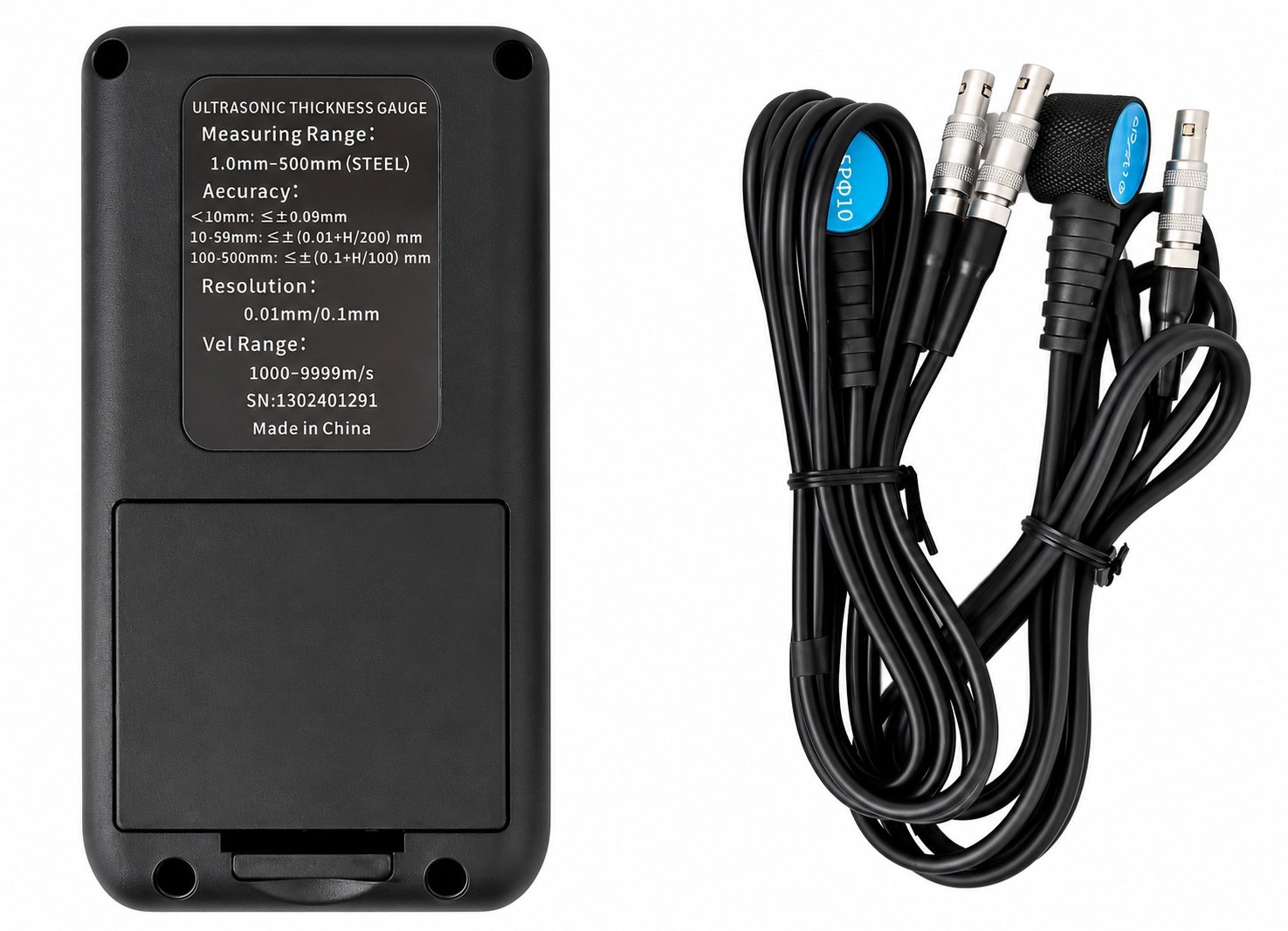

UTG-140 ultrasonic thickness gauge
Lower price
UTG-140 ultrasonic thickness gauge
Price:
After login
Availability:
in stock
Product description
Ultrasonic thickness gauges specifically designed to measure the thickness of metallic and non-metallic materials e.g.aluminium,titanium,plastics,ceramics,glass and plastics.It can also be used to monitor all types of pipes and pressure vessels for loss of thickness due to corrosion or erosion.The gauge is easy to use and will give accurate readings to an accuracy of 1%.This unit is not suitable for cast iron due to its big crystalloid composition.
Features:
- Large LCD screen
- Battery indicator
- Automatic power shut down
- Auto calibration
- Coupling indicator
- Small in size;light in weight;easy to use
- Simple calibration procedure
- 10 data storage units (Model UTG140)
- Sound velocity measurement(with a known thickness of material)
Technická specifikace digitálního ultrazvukového tloušťkoměru UTG-140
| Measuring range: | 1,2 - 220 mm | |
| Resolution: | 0,1 mm | |
| Sound velocity: | 1000 - 9 999 m/s | |
| Measuring accuracy: | ± (1 % n +0,1) | |
| Reference block: | built in | |
| Power supply: | 3 x 1.5 V AA (UM-3) batteries | |
| Dimensions: | 70 x 135 x 38 mm |

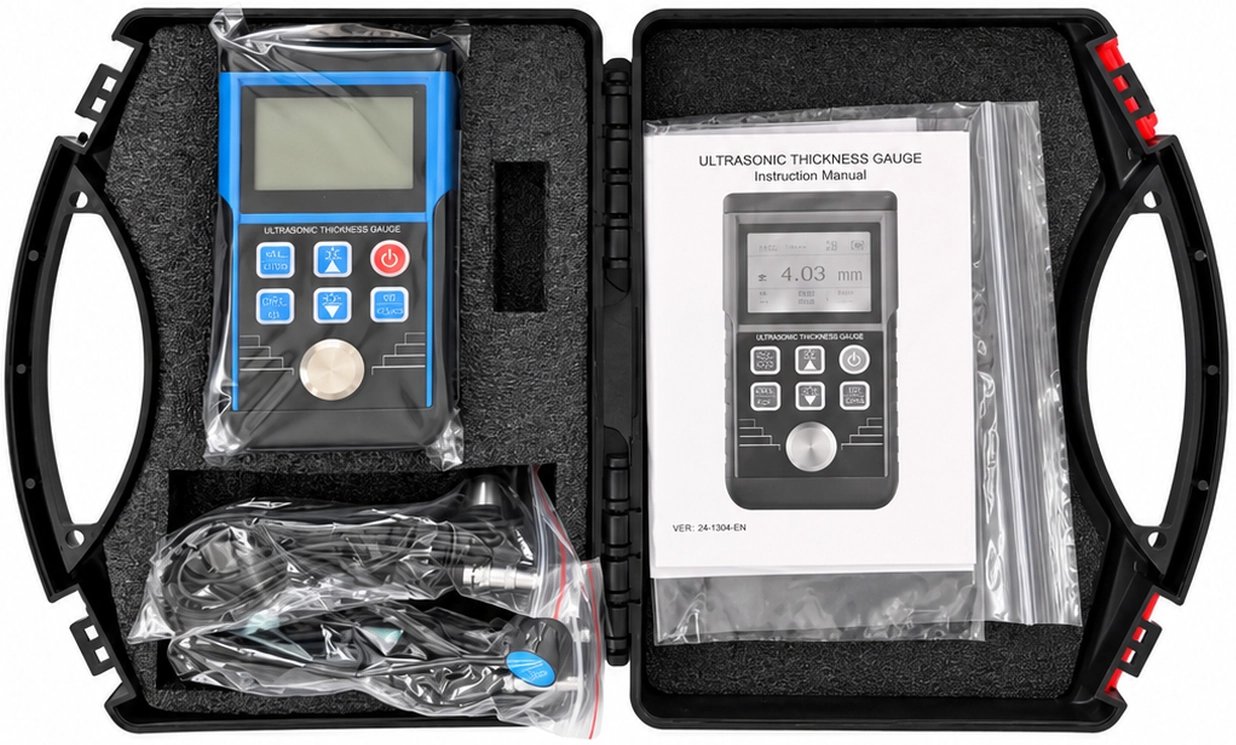

Standardní příslušenství digitálního ultrazvukového tloušťkoměru UTG-140
- Probe, dia. 10 mm, 2.5 MHz + 5 MHz
- Transportation case
- Operation manual
