Single-Side Measurement
Ultrasonic measurement allows you to determine the thickness of a material without needing access to both sides of the part being measured. It is used, for example, to inspect the walls of pipes, tanks, and other components where a standard caliper or micrometer cannot be used.
To ensure accurate results, it is important to select the appropriate sound velocity, prepare the surface to be measured, and ensure good contact between the probe and the surface using coupling gel. The feasibility of measurement also depends on the properties and condition of the specific material.

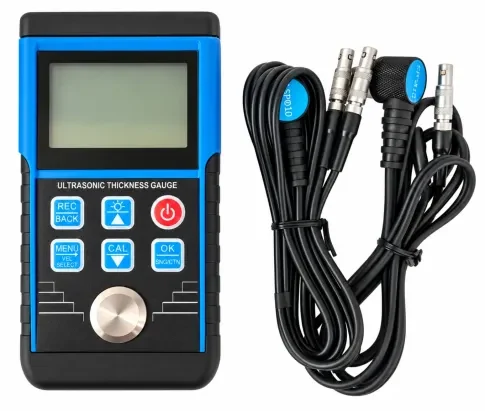

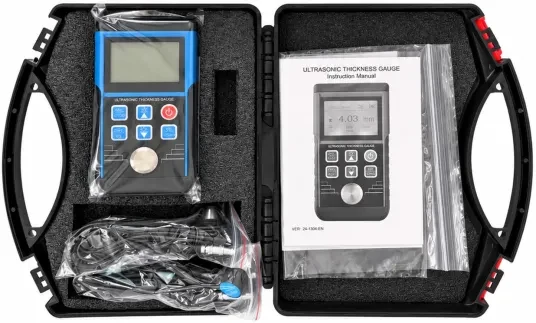

Two Probes Included in the Basic Package
A key advantage of the UTG-140 model is that it comes with two probes operating at frequencies of 2.5 MHz and 5 MHz. This means users have both options available upon purchase and can select the appropriate probe based on the measurement task.
The thickness gauge offers a measurement range of 1.2 to 220 mm and a resolution of 0.1 mm. The achievable range in a specific application depends on the material, the probe used, and the measurement conditions.
